Flange Connect DN50 Stainless Steel Electric Sanitary Ball Valve

Place of Origin : Guangdong, China (Mainland)

Brand Name : AFK

Model Number : Q981F

Supply Ability : 10000 Set/Sets per Week

Packaging Details : Export packing

MOQ : >=1 Sets

Price : Negotiable

Application : General

Material : Stainless Steel, Stainless steel 304,316, 316L

Temperature of Media : Medium Temperature

Structure : Ball

Standard or Nonstandard : Standard

Port : Shenzhen

Contact Now

Flange Connect DN50 Stainless Steel Electric Sanitary Ball Valve

Product	Q981F
Material	SS316 , SS304 or 316L
Nominal Pressure	PN 1.0 Mpa
Pressure	PN1.0Mpa
Structure type	Quickly Mounted, welded, threaded
Seal	FTFE
Environmental Temperature	PTFE=150℃
Applicable Media	Beer, bio-engineer, pharmaceutical, beverage, dairy and so on.
Feature	Safe and hygienic, sealed, long service life

Quickly Mounted Stainless Steel Electric Sanitary Ball Valve

1.Orifice size consistent with the pipeline, does not produce sediment.
2.The flow channel 240Grit polishing, to ensure flow channel unimpeded.
3.Sealing surface with a full package of PTFE, no dead ends, easy to clean.

Ordering Instruction

1.Voltage: DC24V,DC220V,AC110V,AC220V,AC380V
2.Medium type:Temperature, pressure
3.Control type:Switch type, passive contact type, valve position feedback type, intelligent regulation type
4.Intelligent regulation type:Input signal:4-20mA,1-5V,0-10V；Output signal:4-20mA,1-5V,0-10V

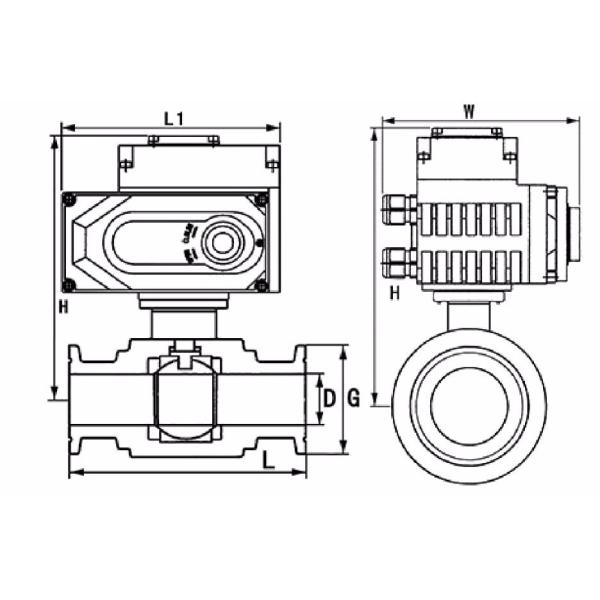

Specification

SSDV series Electric Actuator Technical Parameter		Q981F electric sanitary ball valve body parameter
Voltage	AC110, 220, 380V/DC24, 220V	Nominal DN	DN15-102mm
Torque	50N·M~2000N·M	Nominal pressure	PN1.0Mpa
Optional	Passive contact type, opening signal, intelligent	Valve shaft material	Stainless steel
Operation Range	0~90℃±5℃	The Material of body	SS304/316/316L
Operation time	15s/30s/60s	The Material of valve body	SS304/316/316L
Environmental Temperature	-30℃~60℃	The Material of sealing and seat	PTFE
Manual operation	With handle operation	Temperature	PTFE=150℃
Limit	Electrical, mechanical double limit	Structure type	Quickly mounted, welded, threaded
Protect degree	IP-67IP-67(Explosion-proof housing Exd Ⅱ BT4 optional)	Suitable Medium	Beer, bio-engineering, pharmaceutical, beverage, dairy and so on
Input signal	0-10, 1-5VDC/4-20mA(Intelligent type)	Feature	Safe and hygienic, sealed, long service life

Flange Connect DN50 Stainless Steel Electric Sanitary Ball Valve
